Bottom Sea Valve

SKIPPER SB-200-ECHO 200 mm Gate Valve Single Bottom

  • 200 mm Sea Valve
  • Single Bottom Arrangement
  • DNV approval as standard
  • Other approvals on request

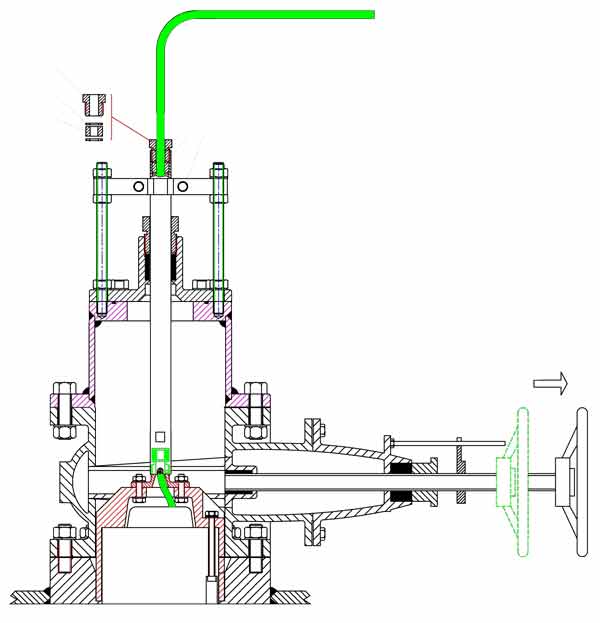

The SB-200-SA is a 200 mm Sea Valve with Gate Valve operation for Single Bottom Arrangement. It is designed for sensors made by SKIPPER Electronics, but could also be used for other sensors with special adaptors.

Specifications:

Sea Valve type:
  • Gate Valve
Opening Diameter:
  • 200 mm
Hull type:
Valve material:
  • Brass
Flange material:
  • Stainless Steel A4
Approval with part number:
  • SB-200-ECHO Standard with DNV approval
  • SB-200-ECHO-ABS With ABS approval
  • SB-200-ECHO-BV With BV approval
  • SB-200-ECHO-LR With LR approval
Mandatory Accessories:
  • SB-200-ECHO-M-KIT Mounting kit
  • A-PACKING Special packing materials
Weight:
  • 150 kgs
Designed for:
  • ETN024G 24 kHz transducer with 40 m cable
  • ETN038G 38 kHz transducer with 40 m cable
Service:
  • Available in most major harbours, world-wide through extensive dealer network
