Bottom Sea Valve

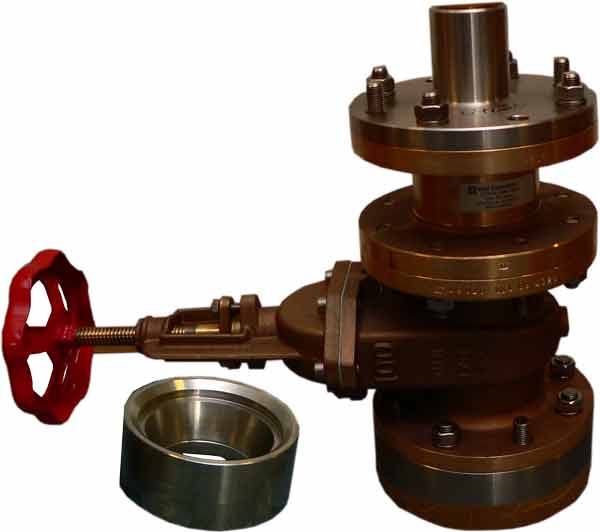

SKIPPER DB-100-SA 100 mm Gate Valve Double Bottom

  • 100 mm Sea Valve
  • Double Bottom Arrangement
  • DNV approval as standard
  • Other approvals on request

The DB-100-SA is a 100 mm Sea Valve with Gate Valve operation for Double Bottom Arrangement. It is designed for sensors made by SKIPPER Electronics, but could also be used for other sensors with special adaptors.


Specifications:

Sea Valve type:
  • Gate Valve
Opening Diameter:
  • 100 mm
Hull type:
Valve material:
  • Brass
Flange material:
  • Stainless Steel A4
Approval with part number:
  • DB-100-SA Standard with DNV approval
  • DB-100-SA-ABS With ABS approval
  • DB-100-SA-BV With BV approval
  • DB-100-SA-LR With LR approval
Mandatory Accessories:
  • DB-100-SA-M-KIT Mounting kit
  • A-PACKING Special packing materials
Weight:
  • 86 kgs
Designed for:
  • EML224SDB-SD Electromagnetic Speed Log Sensor
  • DL2SG-SA Dual Axis Doppler Speed Log Sensor
  • DL1SDB-SA Single Axis Doppler Speed Log Sensor
  • DL850S27G-SB Dual Axis Doppler Speed Log Sensor
  • ETN050G 50 kHz transducer with 25 m cable
  • ETN050XG 50 kHz transducer with 40 m cable
  • ETN200SG 200 kHz transducer with 25 m cable
  • ETN200SXG 200 kHz transducer with 40 m cable
  • ETS50200G-SA 50/200 kHz dual transducer with 25 m cable
  • ETS50200XG-SA 50/200 kHz dual transducer with 40 m cable
Service:
  • Available in most major harbours, world-wide through extensive dealer network
