Bottom Sea Valve

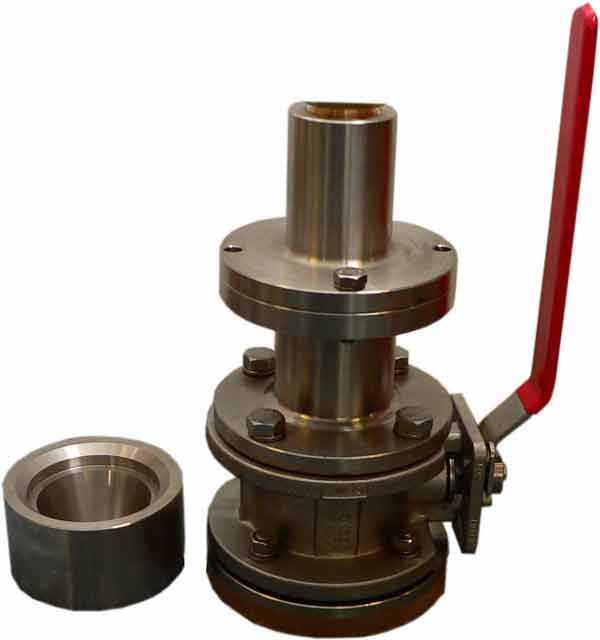

SKIPPER DB-60-SA 60 mm Ball Valve Double Bottom

  • 60 mm Sea Valve
  • Double Bottom Arrangement
  • DNV approval as standard
  • Other approvals on request

The DB-60-SA is a 60 mm Sea Valve with Ball Valve operation for Double Bottom Arrangement. It is designed for sensors made by SKIPPER Electronics, but could also be used for other sensors with special adaptors.


Specifications:

Sea Valve type:
  • Ball Valve
Opening Diameter:
  • 60 mm
Hull type:
Valve material:
  • Stainless Steel A4
Flange material:
  • Stainless Steel A4
Approval with part number:
  • DB-60-SA Standard with DNV approval
  • DB-60-SA-ABS With ABS approval
  • DB-60-SA-BV With BV approval
  • DB-60-SA-LR With LR approval
Mandatory Accessories:
  • DB-60-SA-M-KIT Mounting kit
Weight:
  • 35 kgs
Designed for:
  • EML224SG-SD Electromagnetic Speed Log Sensor
  • DL1SG-SA Single Axis Doppler Speed Log Sensor
Service:
  • Available in most major harbours, world-wide through extensive dealer network

Downloads:
